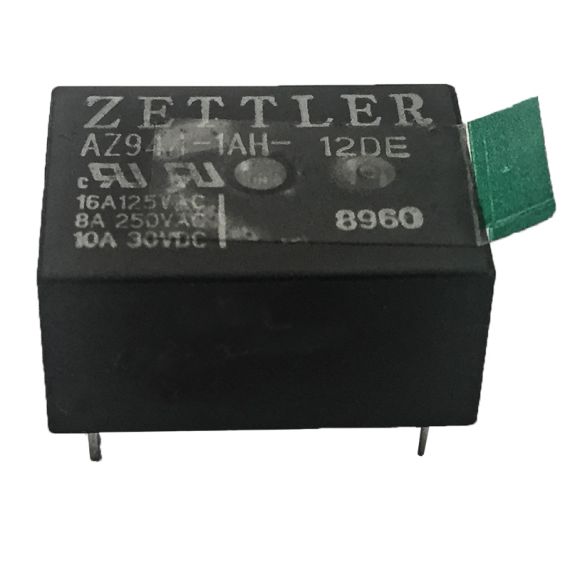

Relè 12V - AZ944 1AH 12DE - ZETTLER
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
CONTACTS
Arrangement | SPST (1 Form A) | |||
| SPDT (1 Form C) | |||
|
| |||
Ratings | Resistive load: | |||
| Max. switched power: 300 W, 2000 VA (SPST) | |||
|
|
|
| 150 W, 1250 VA (SPDT) |
| Max. switched current: 16 A (SPST), 10 A (SPDT) | |||
| Max. switched voltage: 250 VAC/125 VDC* | |||
| *Note: If switching voltage is greater than 30VDC, special | |||
| precautions must be taken. Please contact the factory. | |||
|
|
|
|
|
Rated Load |
|
|
|
|
UL, CUR | 16 | A at | 125 | VAC, resistive |
SPST | 8 | A at | 250 | VAC, resistive |
| 10 | A at | 30 | VDC, resistive |
| 1/4 HP | 125 | VAC | |
| 1/10 HP | 277 | VAC | |
SPDT | 10 | A at | 125 | VAC, resistive |
| 5 | A at | 277 | VAC, 30 VDC, resistive |
| 1/10 HP | 277 | VAC | |
Material | Silver cadmium oxide | |||
|
| |||
Resistance | < 50 milliohms initially | |||
| (24 V, 1 A voltage drop method) | |||
Caratteristiche
Tensione:
12V
