Descrizione

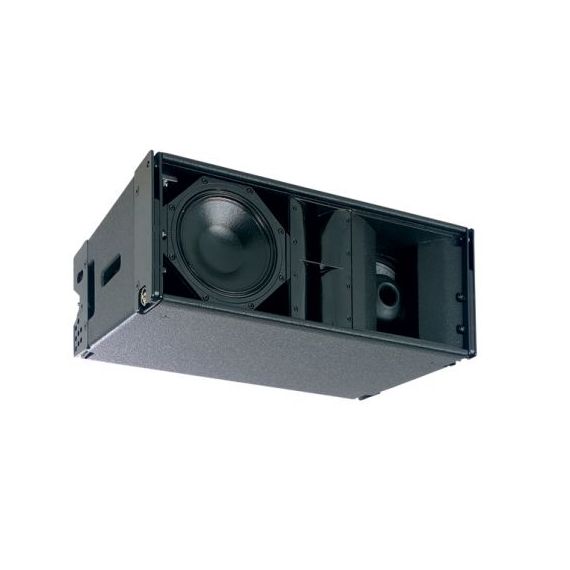

The W8LM is a mini line array enclosure designed to bring line array performance benefits to a variety of small and medium scale applications. It meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres and indoor venues. It is also suitable as a delay system for large scale outdoor sound reinforcement.
Following the constant directivity horn design philosophy of the W8L Longbow and the W8LC, the W8LM is a three-way system that combines line array principles with innovative horn loading techniques to produce a next generation, small line array with maximum dynamic impact.
| TYPE | Three-way, active/passive, mini line array element |
| FREQUENCY RESPONSE (5) | 60Hz-18kHz ± 3dB |
| DRIVERS: LF + MF Section | 8" (200mm)/2" (50mm) voice coil, reflex-loaded direct radiator 8" (200mm)/2" (50mm) voice coil, neodymium driver, front horn loaded, rear reflex loaded |
| DRIVERS: HF Section | 2 x 1" (25mm) exit HF compression drivers, horn loaded |
| RATED POWER (2) | LF + MF: 400W AES, 1600W peak HF: 75W AES, 300W peak Passive: 400W AES, 1600W peak |
| RECOMMENDED AMPLIFIER | MA5.2K |
| SENSITIVITY (6) | LF + MF: 100dB HF: 106dB FR: 99dB rising to 105dB at HF |
| MAXIMUM SPL (calculated @ 1m) | LF + MF: 126dB continuous, 132dB peak HF: 125dB continuous, 131dB peak Passive: 125dB continuous, 131dB peak |
| NOMINAL IMPEDANCE | LF + MF: 12 ohms HF: 12 ohms FR: 12 ohms |
| DISPERSION (-6dB) | 100º horizontal (down to 800Hz), 7.5º vertical 120º horizontal (down to 700Hz) @ -10dB |
| CROSSOVER | 300Hz passive, 2.2kHz active or passive |
| ENCLOSURE | Vertical trapezoid with 3.75º wall angle, multi- laminate birch ply construction |
| FINISH | Textured black paint |
| PROTECTIVE GRILLE | Black perforated steel |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | (W) 620mm x (H) 243mm x (D) 400mm (W) 24.4ins x (H) 9.6ins x (D) 15.8ins |
| WEIGHT (including rigging hardware) | 29kg (64lbs) |
